Ferlux Siris Cast Iron Wood Insert with Turbo 16 kW

Ferlux Siris Cast Iron Wood Insert with Turbo 16 kW.
The Siris 15 kW Ferlux Cast Iron Wood Insert fits perfectly into any interior and creates a warm and comfortable atmosphere up to 315m3.
Efficiency: 78.2% EcoDesign 2022.
Rated heat output: 12.4kW - Maximum calorific output: 16kW - Efficiency: 78.2%
- Maximum recommended heating volume: 323 m3 – Logs 50cm
- Hinged door insert
- Forced and silent ventilation by two tangential turbines, with switch and safety thermostat
- Clean glass system. An airflow removes particles stuck to the glass, providing a view of the fire.
- Black four-sided finishing frame
- 1 Glazed façade.

The Siris wood insert from FERLUX is entirely made of cast iron with the ECODESIGN Label which is synonymous with high performance and respect for the environment.
The Siris wood insert from FERLUX has a functional combustion chamber, as well as a handle to control the adjustment of the air supply and another for the draft.
In addition, it also has two outlets for 120 mm pipes and a system of turbines with different operating positions and a switch for their control.

FERLUX Siris wood inserts achieve good thermal comfort through the combustion of firewood, heating the air circulating through the various grids through a natural or forced convection process using the turbines. Similarly, they also have a clean glass system that prevents the accumulation of ash and dirt inside the fireplace.

• Cast iron insert
• Clean glass system
• Primary and secondary air control
• Draw regulator
• Equipped with two silent turbines
• Double combustion system

The Ferlux Siris Cast Iron Wood Insert with Turbo 16 kW Fits perfectly into any interior and creates a warm and comfortable atmosphere up to 315m3.
Efficiency: 78.2% EcoDesign 2022 provides excellent performance while saving energy in your home. Its panoramic and modern style fits perfectly into any interior and creates a warm and comfortable atmosphere. It perfectly heats large rooms up to 323m3.
Ideal for heating a room up to 150m².
Rapid rise in temperature, you will not wait long to warm up
Double combustion improves the efficiency of the stove thanks to two air inlets that allow better burning of wood
Allows a heat energy efficiency of 78.2% while reducing emissions of carbon monoxides, pollutants in smoke concentrations and fine particles.

The clean glass system prevents soot from appearing on the glass during combustion so you spend less time cleaning your stove.
Suitable for logs of 50 cm max
The Ferlux Siris wood insert is made of carbon cast iron with a cast iron combustion chamber.
The Ferlux Wood Insert in Iron is made of cast iron and has the ECODESIGN 2022 characteristic, synonymous with high performance and respect for the environment.
The Ferlux Siris wood insert is made of cast iron and achieves the thermal comfort that can be used in the main room by natural convection of the heated air thanks to the combustion of wood.
To control combustion, duration and heat input, the Insert has a regulator that acts on the air flow and in addition a second regulator that modifies the secondary air flow, with the clean glass system.

To heat different rooms and achieve an adequate level of comfort, the Ferlux Siris Insert has different grilles that allow air circulation, both by natural convection and by forced convection by the integrated turbines with safety thermostat and switch. They also have two output channels (120mm) to install additional hot air points in the same room or adjacent.
To control the combustion duration and heat input the device has a handle that acts on the air flow for combustion and a second regulator that modifies the air flow of the glass that constitutes the clean glass system.

Learn more:
Primary air: It is located at the bottom of the device. Our equipment allows you to adjust this air intake, depending on whether you want more or less flame, reducing log consumption to obtain a more efficient combustion

Secondary air: It is on top of the teams. It is preheated air that is introduced into the combustion chamber that promotes glass cleaning, reduces emissions to the environment and increases equipment performance.

Clean Glass: At the level of the internal part of the glass, an air curtain prevents the fumes of the combustion from coming into contact with the glass, which allows to see the flame for a long time and better combustion. We also help reduce emissions and fuel consumption.

Double Combustion: It is done by means of an injection of air preheated to a certain height, reacting with the unburned gases that are released from combustion. This allows for higher performance, lower fuel consumption and reduced emissions to the environment.

Draw Regulator: It is located above the devices. The equipment that integrates it makes it possible to regulate the draft of the smoke outlet, reduce the consumption of firewood and increase efficiency.

Turbine: To the natural convection heating capacity of all our equipment, we must add the effect of pulse turbines that some of them have. Especially indicated if you need a hot air duct improving comfort in adjoining rooms.

Canalization: System that allows hot air to be brought through ducts to other rooms by means of very quiet turbines. This ensures greater comfort and lower fuel consumption.

Cast iron interior: Models equipped with a cast iron combustion chamber have the great advantage of perfectly withstanding high temperatures and retaining heat longer, without suffering expansion or damage.

Specifications :
EcoDesign 2022
Wood insert Siris Ferlux cast iron
Rated power: 12.4 KW
Energy efficiency: 78.2%
Maximum power: 16 KW
Regulation: MANUAL
Double combustion system
Easy regulation of primary air
CO emissions (13%): 0.120%
CO particles: 32.2mg/Nm3
OGC: 87.2mg/Nm3
NDx: 184.0mg/Nm3
Smoke temperature: 184.0°C
Average circulation: 10-14 Pa
Consumption: 3.53kg/h
Log size: 50cm
Color: BLACK
Cast iron
Clean glass system
Heating volume: 323 m3

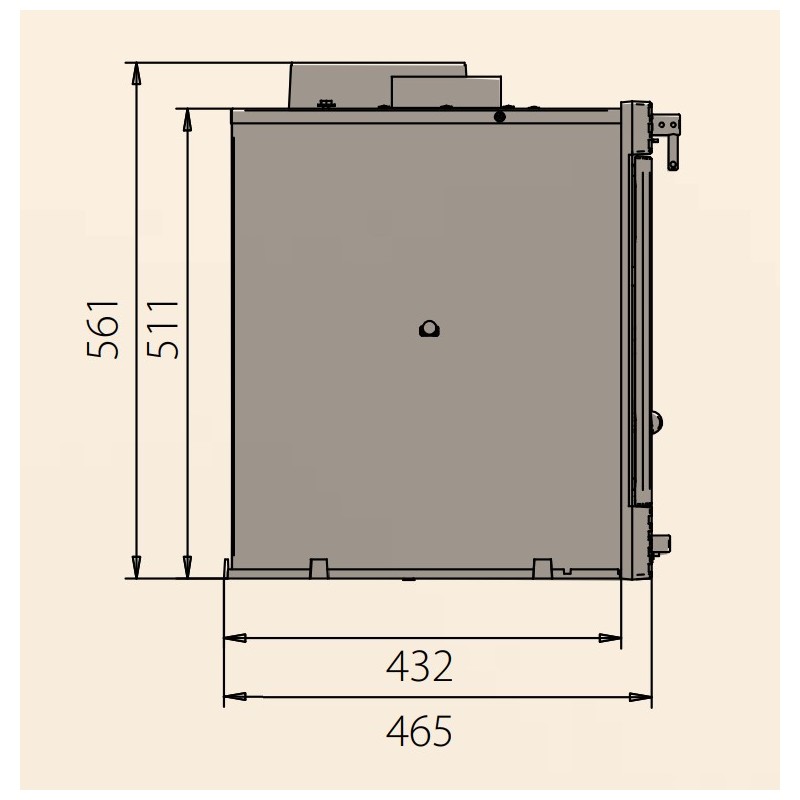

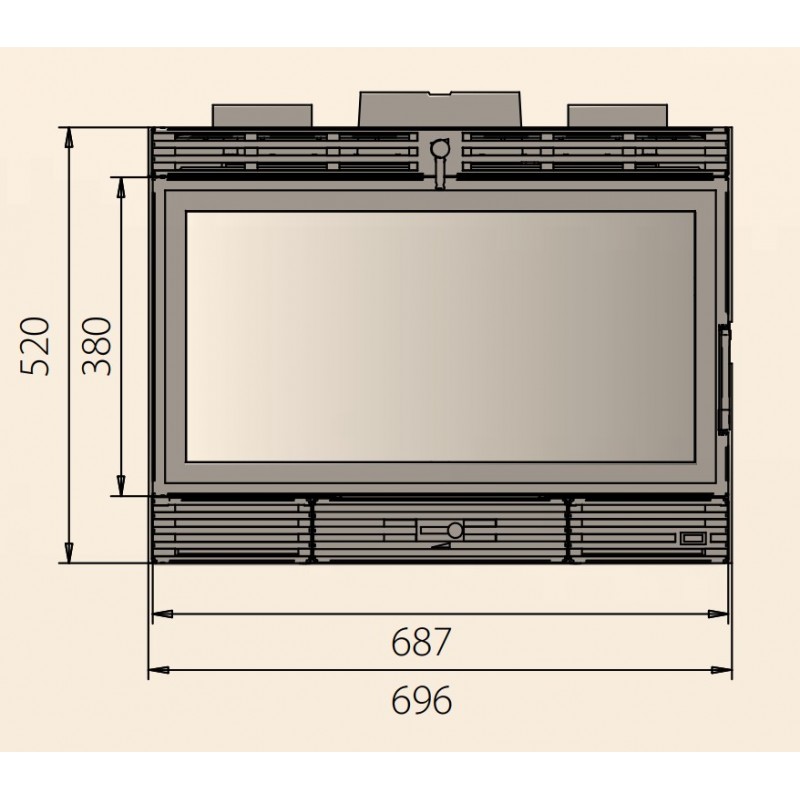

Height: 520mm
Width: 696mm
Depth: 465mm
Interior depth: 294x311x622 mm
Front window dimension: 618x318x4mm
Ashtray with removable drawer
Easy regulation of primary air
Loading: Front

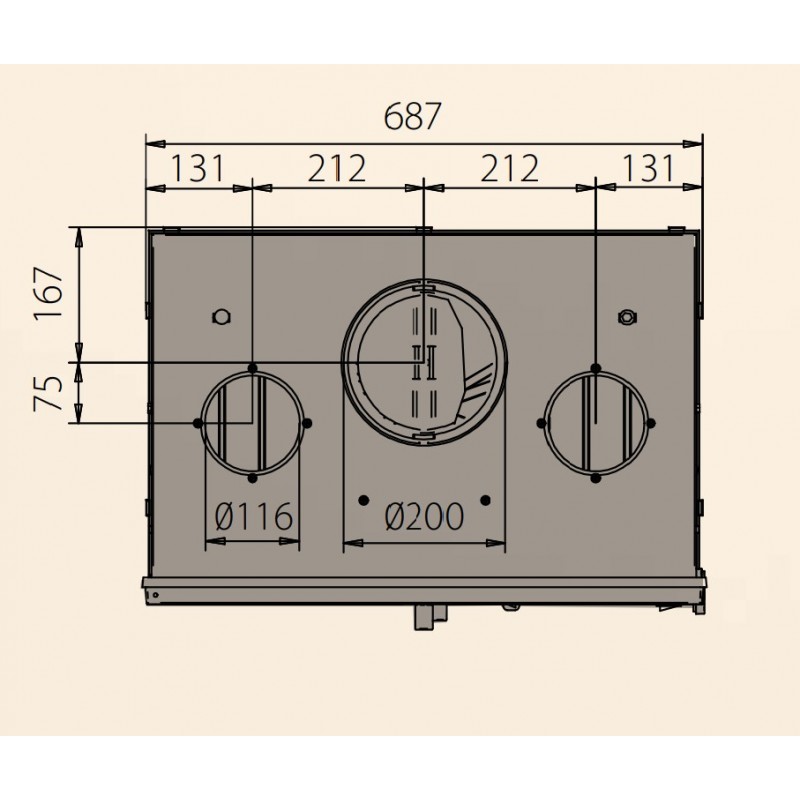

Flue gas outlet diameter: 200 mm
Additional air outlet to channel hot air to other rooms: 2 x 120mm
Flue gas connection: Top
Power supply 220-230v
Frequency 50-60Hz
Average power consumption: 38W.
Weight: 141 kg
Standards: CE, EN 13229
Green flame / Ecodesign 2022 / Eligible tax credit
Ferkux warranty: 5 years
