Sand Filter Pump 13m3-h PoolFilter 100m3 Ubbink

Sand Filter Pump 13m3-h PoolFilter 100m3 Ubbink.

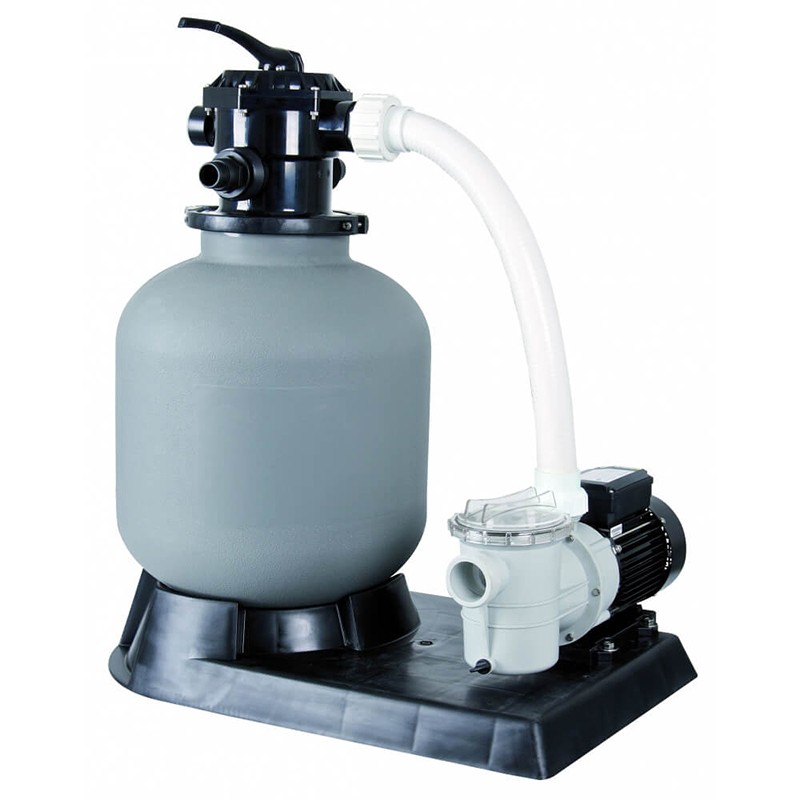

The Ubbink PoolFilter 600 filtration unit offers a flow rate of 13 m3/h. It is specially adapted for the filtration of an above-ground pool thanks to the fittings supplied in Ø 38mm and 50mm. We recommend it for a swimming pool of 40 to 75 m3 of water volume.

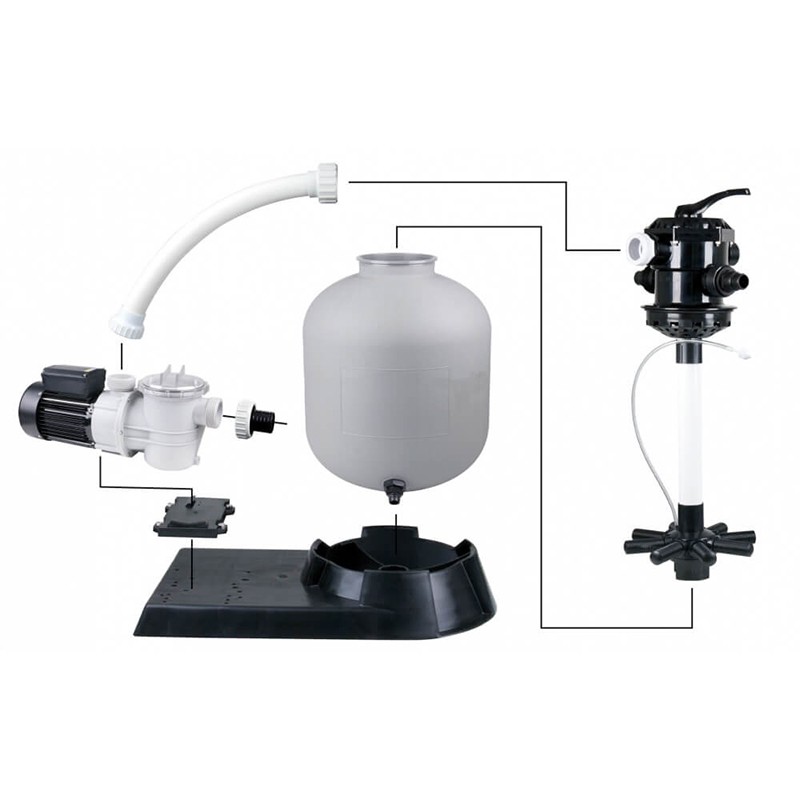

The Ubbink PoolFilter 600 filtration kit consists of an Ø 600 mm sand filter, a Poolmax TP120 filtration pump (1.2 hp) and a TOP 6-way valve. Filter media (sand/gravel or glass) is not provided.

Technical characteristics of the filtration unit:
Filtration pump Poolmax TP 120
Pool filtration pump with pre-filter
Max flow rate: 18,000 l/h
Rated power: 1.20 HP/0.90 KW
Protection: IPX5
Warranty: 2 years
Fitting included: 2 x D.38 mm + 2 x D.50 mm
Plug with short circuit current protection switch (DDR),30 ma, IP54,-25°c
Sand filter:
Filter outer diameter: 600 mm (19")
Flow rate (water column 8 m): max. 13 m3/h
System pressure: max. 3.5 bar
Filling with filter silicalic sand (not supplied): max. 100 kg
Grain of sand (EN 12904:2005) 0.40 – 1.25 mm
6-way valve:
Suction and discharge fittings: 1 1/2"
Functions: Winter / Filtration / Washing / Rinsing / Circulation / Closed
Weight: 40 kg
2-year warranty
