Poolex Jetline Pool Heat Pump Fi 95 Full Inverter Selection

Poolex Jetline Pool Heat Pump Fi 95 Full Inverter Selection.
The Poolex Jetline Fi 95 Selection Heat Pump (Full Inverter) is designed to heat a pool up to 50 m3 (depending on the region).

Jetline Selection Full inverter Fi 95: The accessible top-of-the-range PAC
The famous Poolex Jetline Selection heat pump comes in a new, more economical and quieter Full Inverter version. Its exceptional performance ranks it among the best models on the market. Today, it offers the best value for money in its class.

The Jetline Selection Fi 95 heat pump is intended for heating swimming pools up to 50 m3 (depending on the region, see sizing table). Its state-of-the-latest components provide it with very high performance and maximum reliability: Mitsubishi double rotor inverter compressor (variable speed), variable speed fan, Twisted Tech titanium interchange, refrigerant R32 (more efficient and eco-friendly), remote Wi-Fi control, ...

With a maximum performance coefficient of 14 it restores up to 93% of natural and free energy. Its operation is particularly quiet with an acoustic pressure of 19 dBA to 10 m in Eco mode.

The Jetline Selection Full inverter range of pool heat pumps comes in 5 powers from 7 to 20 kw (monophasated).

The benefits of the Poolex Jetline Fi 95 Selection Heat Pump
-COP up to 14: 93% natural and free energy
-Full Inverter technology (variable speed compressor and fan): quieter and more economical
-Ultra-silent operation: 19 dBA to 10m in Eco mode
-5-mode reversible model: Auto / Boost / Eco / Heating / Cooling
-Wifi command: remote control by smartphone (iOS / Android)
-Double rotating compressor Mitsubishi Inverter (variable speed)
- Twisted Tech Titanium Heat Exchanger with Poolex Antifreeze Technology
-More efficient and environmentally friendly R32 refrigerant
-Automatic cycle reversal de-icing function
-Operating from -7oC of outside temperature
-Simple and intuitive Touch-Go programming
-Reinforced ABS body (anti-UV)
-Compatible all treatments (salt electrolyr, chlorine, bromine, ...)

How do you choose your heat pump?
Size your Jetline Selection Full Inverter heat pump
The sizing of a heat pump is crucial to take advantage of all its advantages: efficient heating, low electricity consumption, long life and quiet operation. Conversely, the choice of too low power will cause the opposite effects: long and pushy heating, high electricity consumption, a reduced lifespan, ...

The table below guides you in choosing the right power depending on your region and the volume of your pool.
These calculations take into account the presence of a blanket on the surface of the pool during the night (bubble sheet, shutter, ...). Without coverage, the power of the heat pump must be doubled due to the calorific losses to be expected.

General Features Poolex Jetline Selection Full Inverter 95 Monophasée
Power: single-phase 230 V / 50 Hz
Cable section to be expected: 3 x 2.5 mm2
Hydraulic connection: PVC - 50 mm
Heating temperature range: 15C / 40C
Operating range: -7C / 43C
5-mode reversible model: Auto / Boost / Eco / Heating / Cooling
LCD programming screen (possibility of deporting it up to 10 m)
Built-in Wi-Fi module: remote control via smartphone
R32 refrigeration gas: more efficient and environmentally friendly
Reinforced and anti-UV ABS body
Built-in flow sensor
Certifications: standard E.U. and T.U.V.
Guarantees: General 2 years, Compressor 5 years, 15-year counter-corrosion

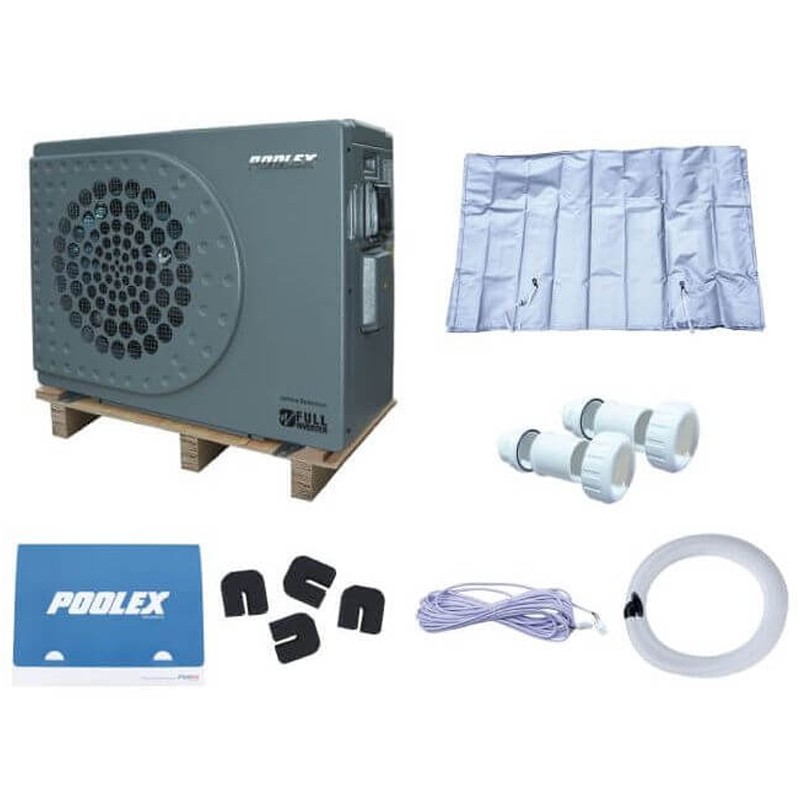

Accessories included
Kit By Pass 50 mm OFFERT Diameter (value: $45)
Insulated wintering cover
PVC Connectors Diameter 50 mm / 1"1/2
Anti-vibration support kit
Condensate evacuation pipe
Extension to deport wired control (10 m)
Manual and maintenance box

Poolex Jetline Selection Fi 95 Technical Features
Pool volume: 40 to 50 m3
MAX COP: 14
Maximum power consumed (kW): 1.83 kW
Max Intensity (A): 8.31 A
Water flow required: 3 - 4 m3/h
Dimensions (L x P x H): 824 x 334 x 656 mm
Dimensions in inches (L x P x H): 32.44" x 13.14 x 25.82"
Packaging Dimensions (L x P x H): 886 x 404 x 778 mm
Noise at 1m (Eco - Boost): 37 dBA - 51 dBA
Noise at 10m (Eco - Boost): 19 dBA - 30 dBA
Compressor type: Double rotary
Compressor brand: Mitsubishi
Interchange: Titanium Twist Tech
Load loss: 1.1 mCE
Guarantee: 2 years
Several choices and versions available on request.

Poolex Jetline Selection Fi 95 Performance
Air 26oC / Water 26oC / Hydro 80%
Max Returned Power (kW): 9.5 kW
Min Returned Power (kW): 2.3 kW
Power consumed (kW): 1.51 kW
COP Max - Min: 14 - 6.3

Air 15OC / Water 26oC / Hydro 70% (Standard EU)
Max Returned Power (kW): 6.7 kW
Min Returned Power (kW): 1.5 kW
Power Consumed (kW) Max - Min: 1.49 kW
COP Max - Min: 6.6 - 4.5
